Time LOG

SICCA J17
Date Experimenter Description Comments
12/14/2015 Marco Pictures Documentation of crystal's conditions as it arrived at CUA.
12/14/2015 Marco Wrapped Preparing for light yield measurement. Approximately 5 layers of teflon tape, and 2 layers of black tape.
12/17/2015 Marco Long. Transmittance Note: not annealed, crystal wrapped.
01/08/2016 Marco LY scan LY measurement with window width of 100ns, at 18oC (see run 3100). LY = 24.28 pe/MeV.
02/01/2016 Marco Thermal annealing Ramp up at 18oC/hour up to 200oC. Stays for 10 hours and ramp down at 18oC/hour.
03/04/2016 Marco Transverse Transmittance At the center of the crystal, every nm from 200nm until 800nm. Sample: 1316
03/04/2016 Marco Dimensions Crystal's dimensions measured. Length and six points of width (3 in each face).
05/23/2016 Marco Transverse Transmittance Scan Wavelengths: 360nm, 420nm, 620nm. Sampling period: 0.6s, moving motor at 2mm/s.
05/23/2016 Marco Irradiation Placed at Co-60 setup at 4:05PM, around 1cm from source (~95mGy/h).
12/20/2016 TH Light Yield run 3506: 25.94 pe/MeV. Note: not a good fit to SEP and signal with the nominal analysis code and without adjusting fit limits - this needs to be re-done carefully.
01/06/2017 Rich/TH Irradiation X-ray 160 kV, 6.2mA, 30 min. Absorption coefficient at 400nm: 1.58 m-1

Transmittance measurements

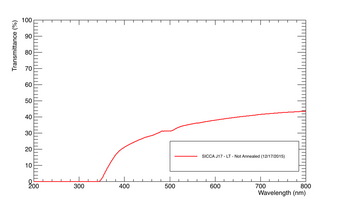

Longitudinal transmittance measured at Lambda 750 (no integrating sphere).

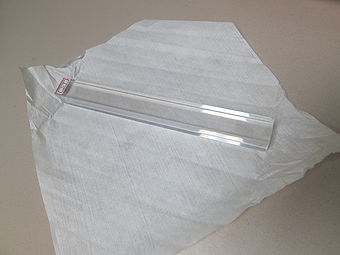

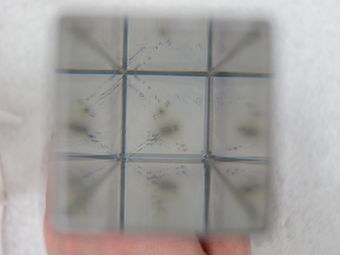

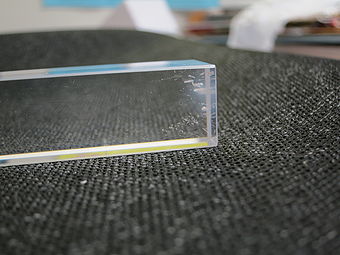

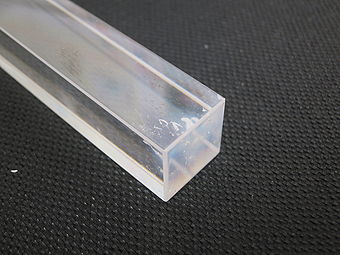

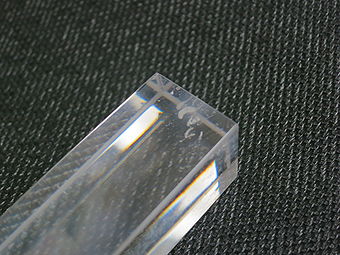

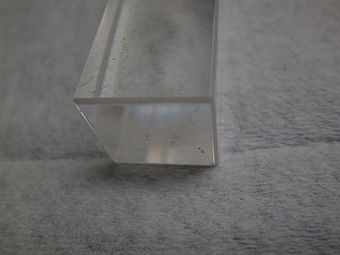

Pictures at 12/14/2015

xxxx.
xxxx.
xxxx.
xxxx.
xxxx.
xxxx.
